Emulsifier QuadroCut 225 / PentaCut 225

QuandroCut 225

Slide The scansteel foodtech®
QuadroCut 225
QuandroCut 225
Slide The scansteel foodtech®
QuadroCutVac 225
Slide The scansteel foodtech®
QuadroCutVac 225 TemBi
Slide The scansteel foodtech®
QuadroCut Vac 225
QuandroCut 225
Slide More information will
be coming soon..
QuandroCut 225
Slide More information will
be coming soon..
QuandroCut 225
Slide More information will
be coming soon..
QuandroCut 225 front for the left angle
Slide More information will
be coming soon..
Slide More information will
be coming soon..
Slide More information will
be coming soon..
Slide The scansteel foodtech
knife set cassettes have
been designed so they
can be assembled at the
meat processors’ workshop
by trained technicians. As
such, the only thing the
machine operators must
do is to replace the knife
cassette at agreed
intervals.
Slide More information will
be coming soon..

Globalt set, er scansteel foodtech® QuadroCut 225/PentaCut 225 emulsifieren Heavy Duty “arbejdshesten” blandt emulgeringsmaskiner. Dansk kvalitetsudstyr udviklet, konstrueret og fremstillet i Danmark. QuadroCut 225/PentaCut 225 emulsifieren er en yderst pålidelig, højtydende og stabil emulgeringsmaskine, designet til ensartet produktkvalitet. Maskinens funktionalitet sikrer lave driftsomkostninger samt sikker og nem betjening.

QuandroCut 225
Download our brochure
EMULSIFIER: QuadroCut Vac 225

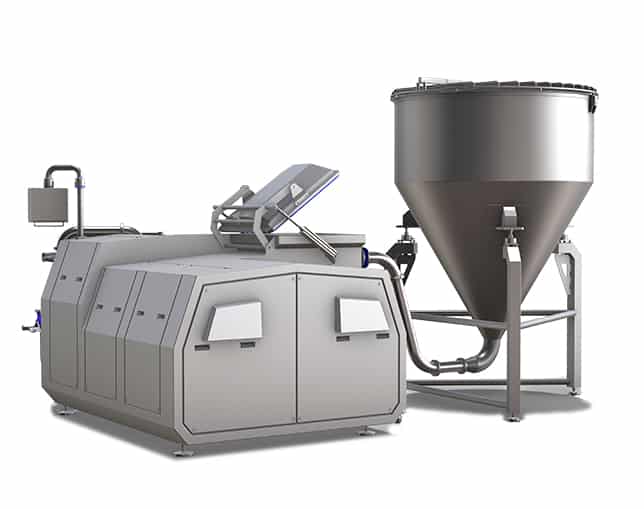

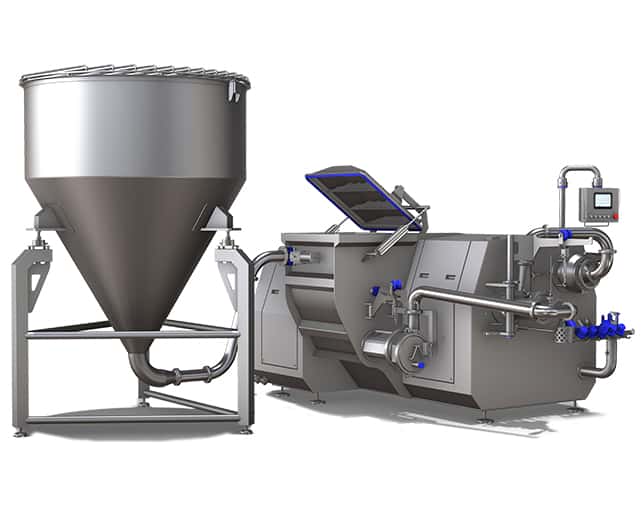

The QuadroCut Vac 225 is the ultimate solution for production of high quality emulsion, fully inline and continuous vacuumizing for removal of air in the final emulsion. Shown with 2500 liter infeed buffer hopper. The QuadroCutVac 225 is further shown with open lid showcasing the easy cleaning and inspection access for the vacuum section of the QuadroCut Vac 225.
Heavy Duty construction helt fra bunden!
scansteeel foodtech® QuadroCut 225/PentaCut 225 er designet til Heavy Duty anvendelser. Den robuste ramme er udviklet til at modstå kræfter fra elektromotorer fra 90 kW – 200 kW. Alt ramme- og kabinetarbejde er fremstillet i rustfrit stål, AISI 304.
QuandroCut 225
QuandroCut 225
Ultrafleksibel Opsætning af Knivsystem
scansteel foodtech® knivsætkassetterne er designet, så uddannede teknikere kan samle dem i værkstedet hos kødproducenterne. Som sådan skal maskinoperatørerne kun udskifte knivkassetten
med aftalte mellemrum.
QuadroCut
Knivsætkombinationer og samling af knivkasette
Knife set Combinations:



PentaCut 5 knive – 4 hulskiver
QuadroCut 4 knive – 3 hulskiver
TripleCut 3 knive – 2 hulskiver
DoubleCut 2 knive – 1 hulskive
Tekniske Specifikationer
Motorstørrelse: Standardområde: 90 kW – 200 kW.
Kapacitet for emulsionsproduktion: 2000 – 25,000 kg/time.
Elektrisk styring: Allen Bradley betjeningspanel og PLC. Siemens betjeningspanel og PLC.
Knivsæthastighed for emulsifier: Frekvensstyret hastighed på 1800 – 3000 o/min. Typisk udgør fødepumpens hastighed dem mest vigtige hastighedskontrol, som kan forprogrammeres i kontrolpanelet for QuadroCut 225 / PentaCut 225 emulsifieren.
Hovedleje:  Oliefyldt leje. Oliekølet..
