KNUSERE - WHOLE PALLET CRUSHERS

WPC 2000 - Twin

Heavy Duty safety
clutch claw and gear box.

Please note the shock
absorbers which allows
the WPC to remain stable
(not moving) even when
the WPC is fed by a fork
lift truck dumping whole
pallets into the crusher
cabinet.

The rotary and stationary
claw design comes in
two versions.

Stationary claws:
Fixet onto the cabinet as
counter claws to the rotary
claw shaft. Each stationary
claw, made of Hardox,
is welded onto both sides
of the rotary claw shaft.

2000 mm wide inlet/infeed
hopper. The hopper is
typically loaded by a fork lift
truck, a lifting device, or an
inclined belt conveyor.

Heavy Duty bearings –
on each end of the crusher
claw(s). Absorbing/
eliminating all axial forces
between claw(s) and gear
box.

The entire infeed hopper
is manufactured in 20 mm
stainless steel plate
AISI 304.

Crusher claw(s) made of
mild steel with hard
chrome cover on claw tips.
Available dimensions of
claw(s) for model A & B:

Planetary gear box
assembly. Between gear
box and crusher claw, a
Heavy Duty safety clutch
prevents damage to the
gear box, example only, in
case a large foreign (metal)
object by mistake is thrown
into the Whole Pallet
Crusher.

WPC 2000-SINGLE & WPC 2000-TWIN

scansteel foodtech Whole Pallet Crusher, WPC, er sandsynligvis blandt de mest omfattende knusere tilgængelige på markedet. Hele kabinettet og rammekonstruktionen er fremstillet i rustfrit stål AISI 304. WPC fås med enkelt eller dobbelt roterende kloaksler. Tilførselsbredden fås i enten 1500 mm eller 2000 mm. Heavy Duty-udførelsen udføres med hovedleje placeret på hver side af enden af klørakslen, hvilket eliminerer alle aksiale kræfter mellem klørne og gearkassen.

scansteel foodtech fremstiller en række hele palleknusere med enten enkelt klo eller dobbelt klør med en standard indføringsbredde på 2000 mm. En hel palleknuser er i stand til at knuse en palle fuld af sammenfrosne blokke der, som sådan, fremstår som én hel frossen blok på, kun som eksempel, 1200 x 800 x 1500 mm..

WPC 2000-Single
WPC 2000-Twin

Tilgængelige klodimensioner:

Tykkelse af roterende klo(kløer) på klospids:
Tykkelse af roterende klo(kløer):
Afstand mellem stationær(e) klo(kløer):

65 mm
60 mm
80 mm

45 mm
40 mm
60 mm

Features:

Fremstillet i 20 mm rustfri stålplade AISI 304.
Fødetragt og udtapsramme/-tragt fremstillet i henhold til kundespecifikke behov/krav.
Knuserklo(-kløer) fremstillet i hærdet materiale.
Designet med få reserve- og sliddele, hvilket giver meget lave drifts- og vedligeholdelsesomkostninger for maskinen.
Dimensioner for frosne blokke: 1000 x 1000 x 1000 mm.
WPC 2000-Single, 10.000 – 20.000 kg/t (22.000 – 44.000 lbs./t). Strøm/motor 75 kW
WPC 2000-Twin, 20.000 – 60.000 kg/t (44.000 – 130.000 lbs./t). Strøm/motor 2 x 75 kW – 2 x 110 kW
Leje på hver ende af knuserklo

scansteel foodtech whole pallet crusher twin

Download vores brochure

Whole Pallets Crushers - English version.pdf 191.20KB

Video af WPC 1500-Twin

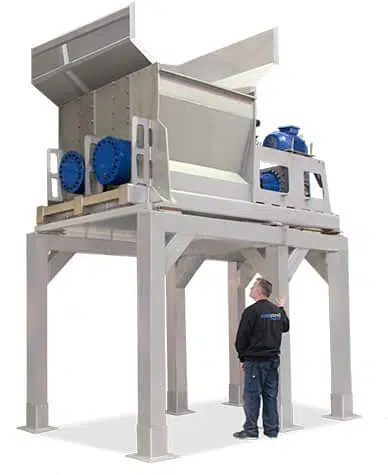

Whole Pallet Crusher, WPC 2000 perfectly integrates with complete pet food processing lines. WPC 2000 shown with a scansteel foodtech® inclined screw conveyor with built-in buffer capacity for a crushed whole pallet of meat raw materials.

The claws for the WPC 2000 can optionally be delivered with claws of mirror polished stainless steel.

Buffer hopper with mounted weighing cells for batch control and automatic start/stop of machinery.

View of the belt transmission.

Top view looking at the inside/infeed section where the whole pallets of meat raw material will be fed into the WPC 2000.
